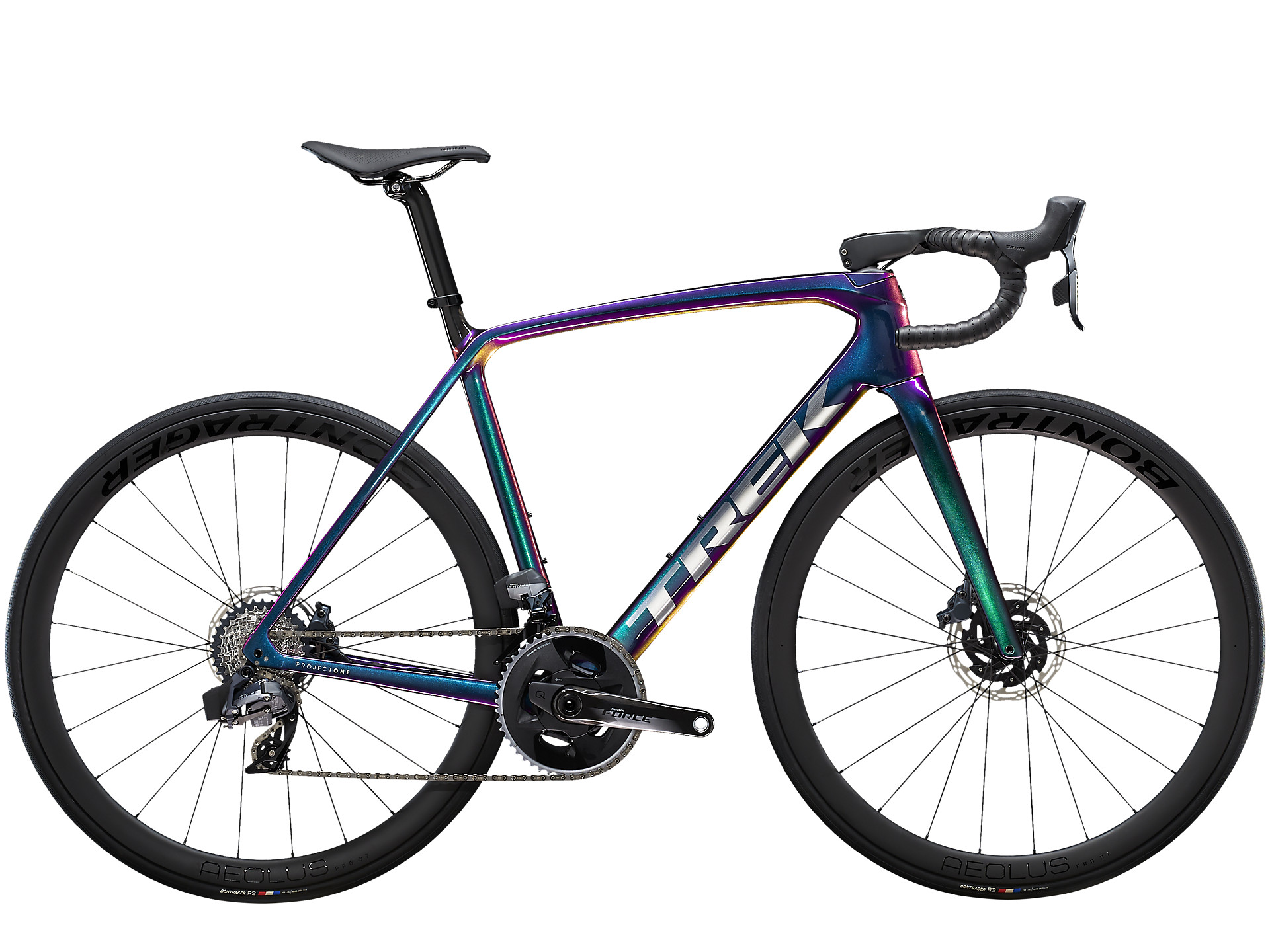

2022 TREK Émonda SLR 7 eTap
Description
Émonda SLR 7 eTap is an ultralight, aerodynamic carbon road bike that’s designed and built to be the fastest climbing bike we’ve ever made. You get the legendary ride quality of our lightest platform, plus more speed, thanks to aero tubes wrought from our lightest OCLV layup ever. You also get the performance advantage of a precise wireless electronic drivetrain and power meter.
Frameset
| Frame | Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
| Frame fit | H1.5 Race |
Wheels
| Wheel front | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle |
|---|---|
| *Wheel rear | Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, SRAM XD-R driver, 142x12mm thru axle |
| Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru axle |
|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
| Tire | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c |
| Max tire size | 28c |
Drivetrain
| Shifter | SRAM Force eTap AXS, 12 speed |
|---|---|
| Front derailleur | SRAM Force eTap AXS, braze-on |
| Rear derailleur | SRAM Force eTap AXS, 36T max cog |
| *Crank | Size: 47 SRAM Force AXS Power Meter, 48/35, DUB, 165mm length |
| Size: 50, 52 SRAM Force AXS Power Meter, 48/35, DUB, 170mm length |
|
| Size: 54, 56, 58 SRAM Force AXS Power Meter, 48/35, DUB, 172.5mm length |
|
| Size: 60, 62 SRAM Force AXS Power Meter, 48/35, DUB, 175mm length |
|
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| *Cassette | Size: 47, 50, 52, 54, 56, 58, 60, 62 SRAM Force XG-1270, 10-33, 12 speed |
| Size: 47, 50, 52, 54, 56, 58, 60, 62 SRAM Force XG-1270, 10-33, 12-speed |
|
| Chain | SRAM Force, 12 speed |
| Max chainring size | 1x: 50T, 2x: 53/39 |
Components
| *Saddle | Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Aeolus Elite, austenite rails, 145mm width |
|---|---|
| Size: 47, 50, 52 Bontrager Aeolus P2 Elite, 155mm width |
|
| *Seatpost | Size: 47, 50, 52, 54 Bontrager carbon seatmast cap, 20mm offset, short length |
| Size: 56, 58, 60, 62 Bontrager carbon seatmast cap, 20mm offset, tall length |
|
| *Integrated Bar Stem | Size: 47, 50 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 38cm width, 80mm stem length |
| Size: 52 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 40cm width, 90mm stem length |
|
| Size: 54 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 90mm stem length |
|
| Size: 56 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 100mm stem length |
|
| Size: 58 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 110mm stem length |
|
| Size: 60, 62 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 44cm width, 110mm stem length |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| Brake | SRAM Force eTap AXS hydraulic disc, flat mount |
| Brake rotor | SRAM CenterLine X, centerlock, round edge, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Accessories
| Battery | SRAM eTap battery pack (with charger) |
|---|
Weight
| Weight | 56 – 7.37 kg / 16.25 lbs |
|---|
Additional information
| Brand | Trek |
|---|---|
| Color | Amethyst, Dark Prismatic/Trek Black, Matte Onyx Carbon, Navy Carbon Smoke/Blue, Navy Carbon Smoke/Viper Red, Radioactive Coral to Yellow Fade |
| Frame Size | 52cm, 54cm, 56cm, 58cm, 60cm, 62cm |
