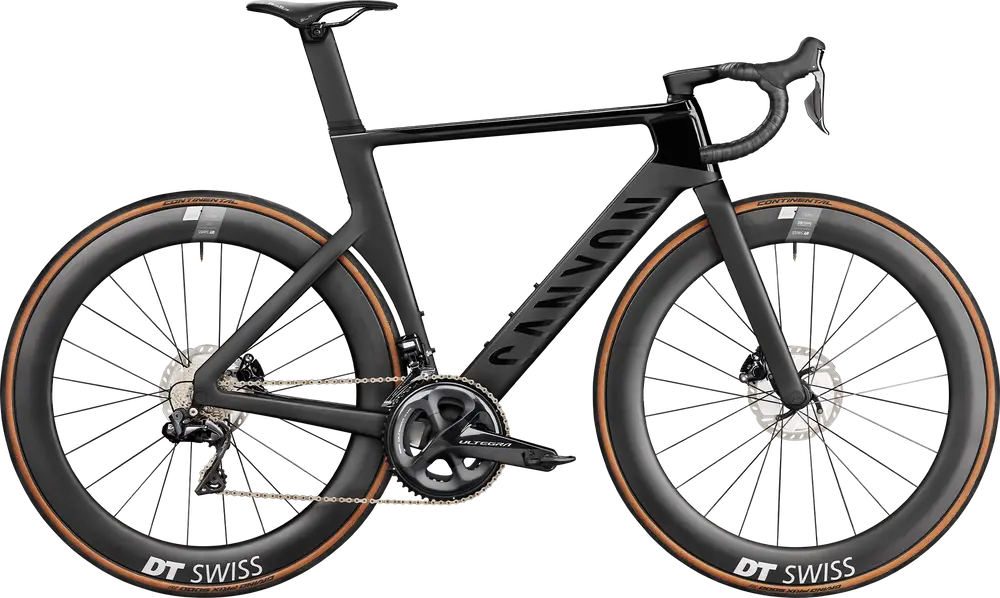

2022 Canyon Aeroad CF SLX 8 Disc Di2 Road Bike

Brand

Canyon

Color

Pro White, Stealth

Frame Size

XL, XS, XXL, XXS, LG, MD, SM

Model Year

2022

$6,478.02

In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
SKU: N/A Categories: , Tag:
  • Free Shipping apply to all orders over $5000
  • 1 Day Returns if you change your mind

Description

Frame

Canyon Aeroad CF SLX Disc

BB Standard: BB86/BB92, Press Fit

Colors: Stealth; Pro White

Fork

Canyon FK0060 CF Disc, All-new design, 12×120 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g, Hub spacing: 12x100mm

Bottom Bracket

Shimano Pressfit BB72, Pressfit BB86 road standard, compatible with 24 mm axles featuring Hollowtech 2 technology., Weight: 69 g

Saddle

Selle Italia SLR Boost Superflow S manganese, Saddle with modern short-nose design and unisex ergonomics., Width: 130 mm (S), Rail material: manganese, Weight: 208 g

Seatpost

Canyon SP0046 Aero Seatpost, Clamp diameter: 27,2 mm

Type: Rigid

Pedals

None included



Groupset
Rear Derailleur

Shimano Ultegra Di2 R8050 SS, 11-speed, short cage design, max. cassette size: 30T, Shadow Shifting technology. Weight: 240 g

Front Derailleur

Shimano Ultegra Di2 R8050, 2×11-speed, with automatic trimming adjust, braze-on mount., Weight: 130 g

Crank

Shimano Ultegra R8000

Power Meter

Shimano Ultegra R8100 4iiii Precision Powermeter, Number of chainrings: 2

Shifters

Shimano Ultegra Di2 R8070, 11-speed, Left-hand electronic shifter, 2-by setup, with adjustable reach. Weight: 150 g | Shimano Ultegra Di2 R8070, 11-speed, Right-hand electronic shifter, 11-speed, with adjustable reach. Weight: 150 g

Cassette

Shimano Ultegra R8000, 11-speed, 11-28T, Advanced mix of aluminium, carbon and steel reduces weight and increases durability. Gear range: 11-28T. Weight: 251 g

Chain

Shimano HG701 11-speed, High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.

Brakes

Hydraulic Disc

Type: Hydraulic Disc

Brake Levers

Shimano Ultegra Di2 R8070, 11-speed, Left-hand electronic shifter, 2-by setup, with adjustable reach. Weight: 150 g | Shimano Ultegra Di2 R8070, 11-speed, Right-hand electronic shifter, 11-speed, with adjustable reach. Weight: 150 g



Wheels
Rims

DT Swiss ARC 1400 Dicut, Front wheel with Aero+ technology for stability and low drag. Tubeless-ready., Rim depth: 62 mm, Inner width: 20 mm, Weight: 817 g | DT Swiss ARC 1400 Dicut, Rear wheel with Aero+ technology for stability and low drag. Tubeless-ready. Rim depth: 62 mm, inner width: 20 mm, driver: Shimano 11-speed road, weight: 936 g

Tires

Continental Grand Prix 5000 25mm, High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection. Tanwall sidewall., TPI: 330, Weight: 225 g | Continental Grand Prix 5000, 28 mm, skinwall, High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection. Tanwall sidewall., TPI: 330, Weight: 240 g

Disc Rotors

Shimano MT800, Weight: 133 g

Bike Geometry

Size XXS XS SM MD LG XL XXL
Stack Reach Ratio

1.35 mm 1.39 mm 1.39 mm 1.43 mm 1.46 mm 1.45 mm 1.46 mm
Bottom Bracket Height

264 mm 264 mm 266 mm 266 mm 266 mm 266 mm 266 mm
Front Center

572 mm 577 mm 583 mm 588 mm 601 mm 624 mm 637 mm
Rake

42 mm 42 mm 41 mm 42 mm 41 mm 38 mm 41 mm
Trail

74 mm 68 mm 61 mm 57 mm 58 mm 61 mm 55 mm
Stack

490 mm 513 mm 531 mm 552 mm 572 mm 598 mm 616 mm
Reach

364 mm 370 mm 382 mm 385 mm 393 mm 411 mm 421 mm
Top Tube Length

512 mm 525 mm 541 mm 551 mm 564 mm 590 mm 605 mm
Seat Tube Angle

73.5 ° 73.5 ° 73.5 ° 73.5 ° 73.5 ° 73.5 ° 73.5 °
Seat Tube Length

443 mm 473 mm 503 mm 533 mm 563 mm 593 mm 623 mm
Head Tube Angle

70.5 ° 71.5 ° 72.75 ° 73.25 ° 73.25 ° 73.25 ° 73.75 °
Head Tube Length

86 mm 109 mm 126 mm 147 mm 167 mm 193 mm 211 mm
Chainstay Length

402 mm 402 mm 402 mm 402 mm 402 mm 402 mm 402 mm
Wheelbase

963 mm 968 mm 975 mm 980 mm 993 mm 1016 mm 1029 mm
Bottom Bracket Drop

72 mm 72 mm 70 mm 70 mm 70 mm 70 mm 70 mm
Standover Height

725 mm 751 mm 777 mm 802 mm 826 mm 852 mm 876 mm
Wheels 700 700 700 700 700 700 700
Rider Max Height 167 cm 173 cm 179 cm 185 cm 191 cm 197 cm cm



Additional information

Brand

Canyon

Color

Pro White, Stealth

Frame Size

XL, XS, XXL, XXS, LG, MD, SM

Model Year

2022
